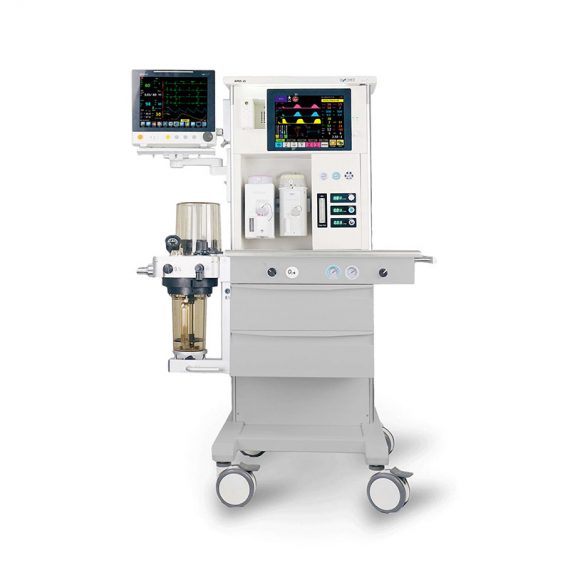

APUS x2
R5.00
Contemporary Design meets sophisticated Technologies – APUS x2 comes with a semi-electronic Flowmeter and a 12“ Touch Screen Display
- 12.1” TFT touch screen
- User friendly interface design
- Tidal volume 5 – 1.500 ml
- Semi-electronic flowmeter
- Circle system consisting of metal materials
- Bypass function for soda lime canister
- All ventilation modes to suit neonatal, pediatric and adult patients.
- Highly integrated breathing circuit with built-in heater
- ACGO function to handle open circuits
Description

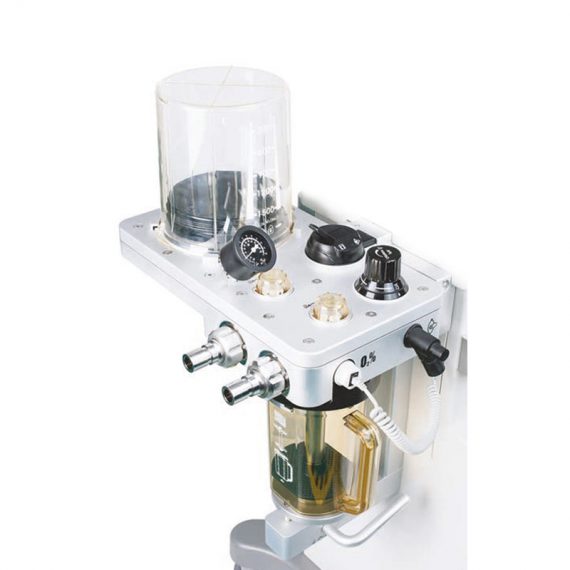

Reliable CO2 absorber
One-hand operation designed CO2 absorber. By-Pass function to ensure smooth operation. Canister detection feature. Autoclavable PPSU material (up to 134 °C).
Comfortable structure
Two-sided guide rails for patient monitor, support arm and injection pump. Stainless steel material can withstand any chemical sterilization agent. Equipped with LED light to provide lighting for the large workbench.
Breathing circuit applicable for complete range
Autoclavable metal and plastic materials. Suitable for adult, pediatric and neonatal patients. Featured with stable pressure tightness. Visual observation of bellows and valves. Breathing system with ascending or descending bellows.
Superior ventilator
Fresh gas, compliance and leakage compensation. VCV, PCV, PSV, SIMV, PCV-VG and Manual ventilation modes. Integrated ACGO feature to connect open circuit.
Specifications
| Screen | 12.1 inch TFT LCD screen, 800 x 600 pixels, Touch Screen |
| Gas supply | O2,N2O, AIR |
| Vaporizer mount | Selectatec® type for two vaporizer |
| ACGO | Standard |
| Flowmeter | Semi-electronic type – digital and virtual display |
| Absorber bypass | Standard |
| Ventilator modes | VCV, PCV, PSV, SIMV, PCV-VG, Manual/Spont |
| Tidal volume | 5 – 1.500 ml |
| Frequency | 4 – 100 bpm |
| I:E ratio | 4:1 – 1:10 |
| Pressure control | (PEEP+5) – 70 cm H2O |
| Pressure support | (PEEP+5) – 50 cm H2O |
| PEEP | Off, 3 – 30 cm H2O |
| Trigger | Flow and pressure |
| Waveforms | Pressure-t, Flow-t, CO2-t, user confi gurable |
| Spirometry loop | P-V, P-F, F-V, Reference Loop |
| Cylinder yoke | Optional (O2, N2O) |
| Battery | Standard 120 min (1 Li-Ion battery, 4800 mAh), optional 240 min (2 batteries, 9600 mAh) |
| AGSS | Optional |
| Auxiliary power outlets | 3 |
| Drawers | 2 |
| Reading lamp | LED lighting included |
| Gas monitor module | Optional (CO2, AA) |
| Breathing circuit heater | Standard |
| O2 cell | Chemical |
| Optional functions | Suction unit, AGSS |
