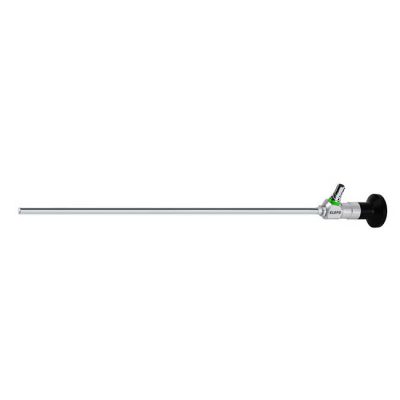

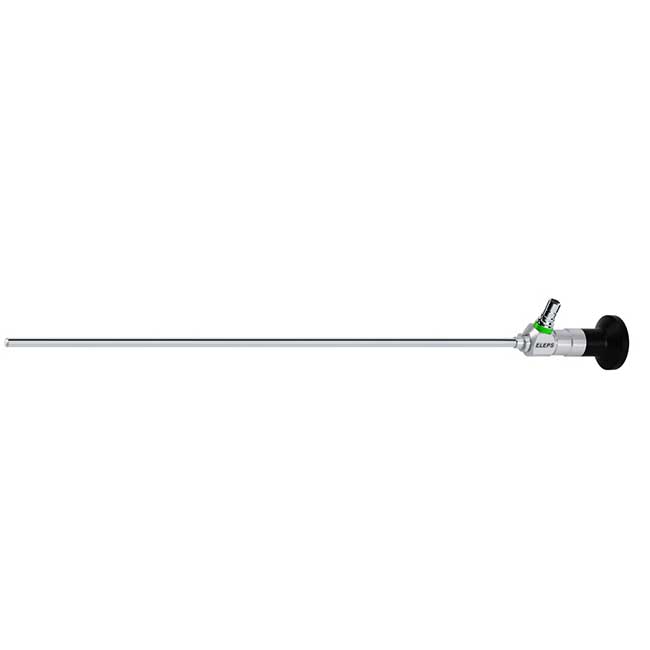

Laparoscope TO1-050-300-00 Eleps

Sku:

N/A

Description

art. 501018

diameter: 5 mm

angle of view: 0°

working lengh: 301 mm

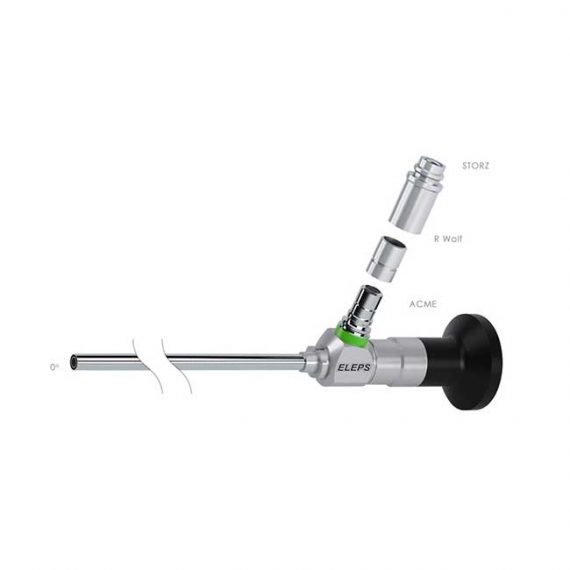

Laparoscope is designed for the optical observation of the surgical field for diagnostic examinations and surgical operations on internal organs. The diameter of the tube 5 mm. Working length 301 mm. The angle of viewing direction 0?. The optical system rod with multi-coated. Illuminated connector is 80? angle to the axis of the endoscope, for preventing unnecessary light guide cable bend at the junction and premature wear. Optics is compatible with all standard medical cameras. Can be used with high-definition cameras («HD and Full HD»). Housing material tube optical special corrosion-resistant steel. Material eyepiece medical plastic. It comes with two adapter cables to connect the light sources of various manufacturers (STORZ, R Wolf).

Additional information

Laparoscope TO1-050-300-00 Eleps	Laparoscope TO1-050-300-00 Eleps

Quick Comparison

Settings Laparoscope TO1-050-300-00 Eleps remove Spectrum remove Incontinence Therapy Device Biolito remove es 120 remove ZEUS-200S /ZEUS-150 remove Myolito Neuromuscular Stimulator remove

Name Laparoscope TO1-050-300-00 Eleps remove Spectrum remove Incontinence Therapy Device Biolito remove es 120 remove ZEUS-200S /ZEUS-150 remove Myolito Neuromuscular Stimulator remove


SKU

Rating

Price R5.00 R5.00 R5.00 R5.00 R5.00

Stock

Out of stock

Availability Out of stock

Add to cart

Select options

Description

small surgical procedures for outpatient clinics

Monopolar work Bipolar work Automatic power regulation (Spectrum Result) SDS System NEM System Overload Protection Footswitch recognition Available also in 3-pin monopolar /2-pin bipolar version

200W and 150W Electrosurgical Unit Recommendation of usage : Endoscopy surgery

Content

art. 501018

diameter: 5 mm

angle of view: 0°

working lengh: 301 mm

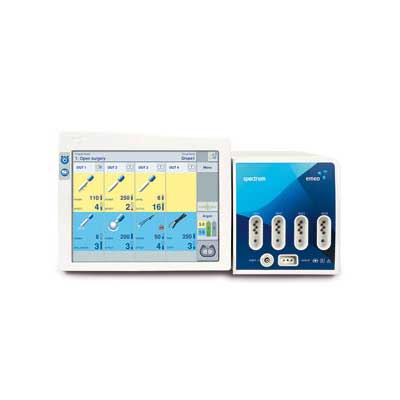

SpectrumSmart Device System

10″ high-resolution color screen
Up to 100 memory locations
New operation modes
Automatic power regulation
Real-time monitoring of output parameters
Power monitor
Different language version
Voice communication

Operating modes

Monopolar cutting: pure, with haemostasis, cutting with desiccation, and for procedures in liquid environment (urology, arthroscopy)
Monopolar coagulation: soft, forced, spray, hybryd, standard argon, endoscopic and pulse argon
Bipolar cutting: standard and for procedures in liquids environment (urology, arthroscopy)
Bipolar coagulation: soft, forced and for procedures in liquid environment (urology, arthroscopy)
endoscopic cutting and coagulation modes
Vessel sealing system ThermoStapler®

Safety

NEM System
AutoTest
OverLoad Protection

comfort

SDS system
Automatic power regulation
Spectrum Result
Power Monitor

Power output

Monopolar cutting: 350 W
Monopolar coagulation: 200 W
Bipolar cutting: 400 W
Bipolar coagulation: 120 W
Generator operation frequency: 333 kHz

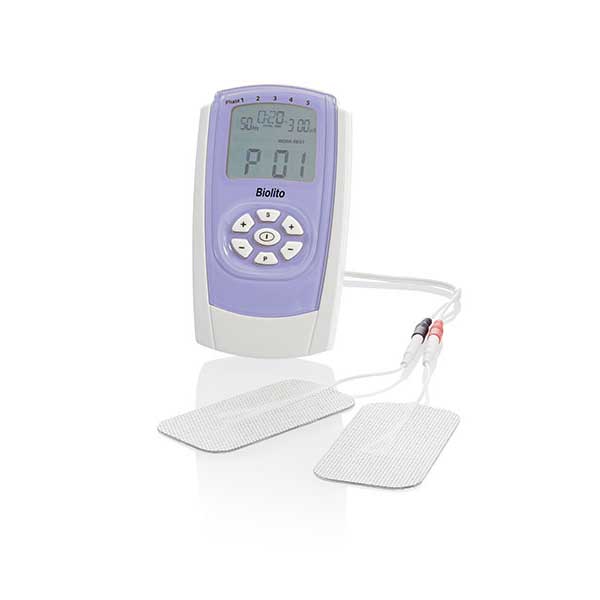

The Biolito is an inexpensive digital stimulator for incontinence therapy with an additional pain program according to Prof. Han. A program can - divided into up to 5 phases - be designed according to your own wishes. Incontinence therapy includes forms of treatment for both stress and urge incontinence as well as fecal incontinence. Mixed incontinence can be comfortably treated with individually designed phases in a freely configurable program. The therapy control of all important data is possible at a glance and the integrated real-time clock also allows the detailed evaluation of every session of the last 60 days of treatment.

Technical Specifications

Two isolated, independent channels
Pulse shape: asymmetrical, rectangular, biphasic (without direct current component)
Intensity: 0 - 80; mA
Frequency: 1 - 150 Hz
Pulse width: 50 µs - 450 µs
Rise time: 0.1 - 9.9 seconds
Power supply: 9 volt block battery

Device Consists of:

1 Biolito incontinence therapy device
2 connecting cables for the electrode pairs / probe
1 block battery 9V
1 instruction manual
4 self-adhesive electrodes (40 x 40 mm) + 4 self-adhesive electrodes (40 x 80 mm)

Features

SDS system

The SmartDevice System detects and identifies the connected instrument. It automatically adjusts the operating mode and output settings to the instrument, thus improving the operator’s working comfort. The user does not have to wonder which mode and which setting to use for a specific instrument. The SmartDevice System identifies the instrument connected to spectrum. It automatically selects the modes in which it can be used and sets the suggested operating parameters for the identified instrument. In this way, it increases instrument life and safety of work.

Spectrum Result

The idea of spectrum is to set all parameters by default, and once selected, the settings will not require subsequent adjustments. SpectrumResult performs real-time monitoring of all operating parameters of the system: actual power, current intensity and voltage. Constant monitoring of all parameters always ensures the best result. With the solution used in SpectrumResult, the user does not need to control power settings. The electrosurgical system itself ensures that the output settings are maintained so as to obtain the desired effect of work, regardless of the surgical conditions.

Touch screen

EMED electrosurgical system are controlled with a touch screen which is designed to provide the user with easy access to all diathermy functions. The settings or modes of operation are changed by touching icons on the screen. To ensure maximum ease of operation there are no extra buttons or knobs.

Program storage position

Memory program that allows customise settings for different interventions and surgeons.

Bipolar cutting in liquids

This operating mode is used for special bipolar forceps with two cutting loops that work in a physiological salt environment.

MultiSwitch

Multifunction footswitch allows remote changing of the settings with a single press of a footswitch.

Surgilogic

Automatic regulation of the power supply level according to needs. A microprocessor monitors the tissue parameters on an ongoing basis to achieve the optimum cutting effect.

NEM System

The NEM (Neutral Electrode Monitor) system controls the quality of the contact of a return electrode with the patient's skin. Using the NEM system, as well as two-compartment adhesive electrodes, it has totally eliminated the problem of burns to the patient's skin while applying a patient return electrode.

AutoTest

Once switched on, EMED systems perform a comprehensive internal test, of which the result is displayed in the form of a precise, legible message.

Overload Protection

Supervising the temperature of the most critical components of the system makes it possible to avoid damaging the system, even if it is being heavily used.

PowerStart

In situations of increased demand, the intelligent control system can temporarily increase the power supply to support the starting of the cutting process.

Endoscopic program PP

Special cutting modes necessary to remove polyps and the procedure of papillotomy. Alternating cutting and coagulation means optimal coagulation can be achieved for this application and reduces the probability of bleeding.

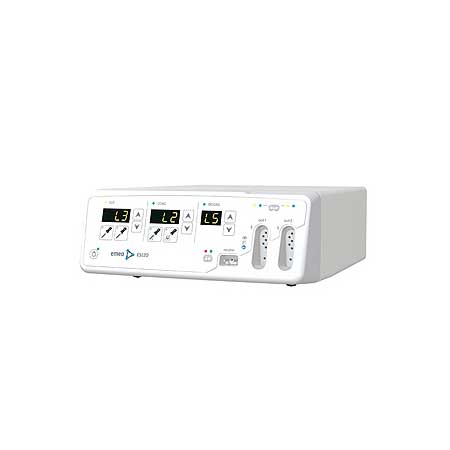

Operating modes

Monopolar cutting: pure, blend
Monopolar coagulation: soft, forced
Bipolar coagulation

Safety

NEM System
AutoTest
OverLoad Protection

Comfort

Automatic power regulation
Real-time monitoring of output parameters

Power output

Monopolar coagulation: 1-9 levels, max. 120W
Bipolar coagulation: 1-9 levels, max. 120W
Generator operation frequency: 333 kHz

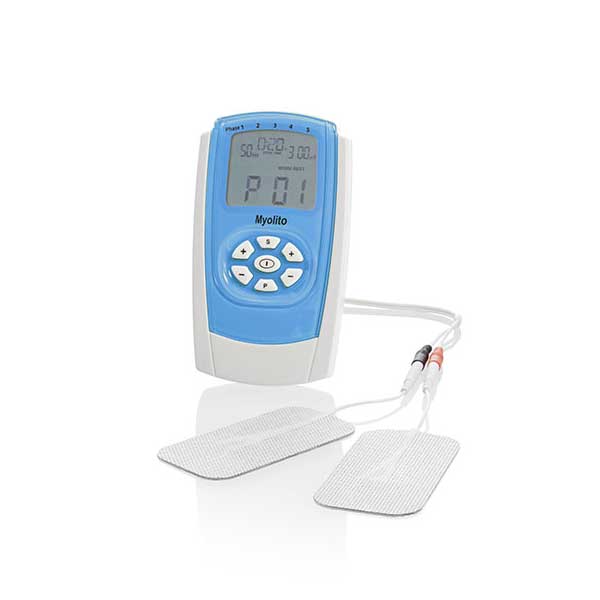

The Myolito combines three forms of therapy in one device: Four different operating modes can be used for pain therapy:

Continuous flow of electricity
Modulated pulse
Burst mode
Han mode

For rehabilitative muscle training, programs are included that either enable targeted muscle building and strengthening or can be used for relaxation and purification. Muscular imbalances can be prevented and regeneration processes accelerated. Incontinence therapy includes forms of treatment for both stress and urge incontinence as well as fecal incontinence. Mixed incontinence can be comfortably treated with individually designed phases in a freely configurable program.

1. Continuous Tens (CONT):

Unchanged flowing current impulses block the pain-conducting nerve tracts and create a permanent tingling sensation on the skin. With this classic type of treatment, the body can get used to the stimulus relatively quickly and the effect therefore diminishes with longer treatment.

2. Dense-Disperse-Stimulation (CONT + BURST) according to Professor Han:

The constant change between 2 Hz and 100 Hz in a short rhythm (2-4 seconds) ensures the release of different opioids with a lasting pain-relieving effect.

3. Modulated Tens (MOD):

Regular automatic changes of the parameters (frequency, pulse width and / or intensity) create the feeling of an increasing and decreasing current. This wave-like flow of current significantly delays the body's getting used to the stimulus.

4. Burst (BURST):

Twice a second, 9 impulses with a fixed frequency and pulse width are administered. This artificially generated frequency of 2 Hz is intended to increase the body's own endorphin production and thus combat pain in a natural way.

Device Set Consists of:

1 Myolito multifunctional stimulator
2 connecting cables for the electrode pairs / probe
1 block battery 9V
1 instruction manual
4 self-adhesive electrodes (40 x 40 mm) + 4 self-adhesive electrodes (40 x 80 mm)

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A
