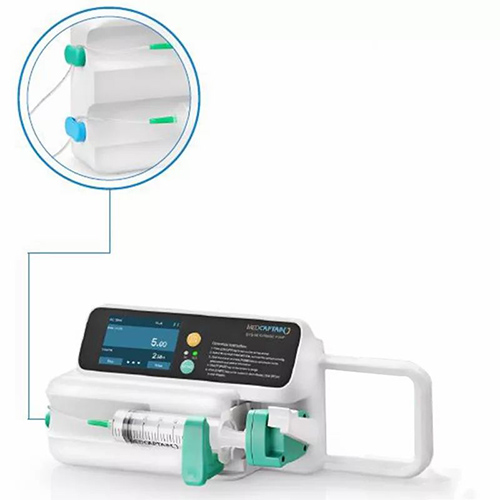

Syringe Driver SYS-50

R5.00

A simple and safe IV infusion device, used to regulate and automate syringe administration. Features continuous titration, responsive and clear 3.5” touch screen and an open design to allow for constant observation.

N/A

Description

Syringe Driver SYS-50 by Medcaptain is SmartSimplified, and Safe.

What is a Syringe Driver?

A Syringe Driver is a device that regulates and automates syringe injections through tubes and a pumping mechanism. The device (such as the Syringe Driver SYS-50 by MedCaptain) allow the user or medical professional to enter values such as volume of fluid, rate of injection, and can detect air bubbles and other complications in IV treatment.

Syringe Driver SYS-50/52 by Medcaptain Features:

  • 3.5″ Touch Screen Operated
    • With the responsive and clear touch screen it’s easier to see parameters are easy to read and easy to control.
  • Tube Management System
    • A standard fitted side clamp will prevent any infusion tubes becoming entangled and enhance the infusion overview and control.
  • Continuous Titration
    • The devices can change the flow rate during an infusion without interrupting it.
  • Open Design
    • Syringe installation is fast and convenient, and the position at the front of the device allows for constant observation of remaining liquid in the syringe.
  • Ingress Protection of IP24
    • The Syringe Driver SYS-50/52 by Medcaptain meets IP24 standards meaning it is (among other things) splash resistant and suitable to various kinds of environments.
  • Drive Head Protection Design
    • Easy and safe to transport and avoids bolus if the pump happens to fall down.
  • Large Capacity Lithium-ion Battery
    • Can run, uninterrupted, for up to 20 consecutive hours without needing to be charged.
  • Pre-Occlusion Alarm System
    • This alarm system has the ability to warn clinical personnel prior to the occlusion alarm, ensuring safe infusion for the patient.

Ambulance Ready:

Completely Ambulance EN 1789 Standard Certified. This means Syringe Driver SYS-50/52 by Medcaptain and Infusion Pump SYS-70 by Medcaptain are guaranteed to provide stable infusion during transportation.

Wireless Connectivity:

The devices have an optional built in wifi module. Both devices can connect via WLAN or LAN connection (Wirelessly or directly into the model with an ethernet cable) to any HIS (Hospital Information System).

They are connected to Medcaptains MP-900 Infusion Central Monitoring System to implement centralised monitoring of all infusions.

All SYS series pumps can also access the CIS (Clinical Information System) and HIS for clinical data integration.

Additional information

Medicaptain Syringe Driver SYS-50

Medicaptain Syringe Driver SYS-50

Quick Comparison

SettingsSyringe Driver SYS-50 removeCA-500 Ambulatory Syringe Pump removeInfusion Pump i7 removeHK-400 Syringe Pump removeCA-2000 Volumetric Infusion Pump removeSYS 6010 Infusion Pump remove
SKU
Rating
PriceR5.00R5.00R5.00R5.00R5.00R5.00
Stock
Availability
Add to cart

DescriptionA simple and safe IV infusion device, used to regulate and automate syringe administration. Features continuous titration, responsive and clear 3.5” touch screen and an open design to allow for constant observation.A smart and accurate infusion device that uses a unique motorised door mechanism and automatic anti-free-flow clamp. It features touchscreen operation, various infusion modes and allows for continuous titration to be easily adapted to various clinical departments and a variety of special drugs. Wi-Fi option available.
ContentSyringe Driver SYS-50 by Medcaptain is SmartSimplified, and Safe.

What is a Syringe Driver?

A Syringe Driver is a device that regulates and automates syringe injections through tubes and a pumping mechanism. The device (such as the Syringe Driver SYS-50 by MedCaptain) allow the user or medical professional to enter values such as volume of fluid, rate of injection, and can detect air bubbles and other complications in IV treatment.

Syringe Driver SYS-50/52 by Medcaptain Features:

  • 3.5″ Touch Screen Operated
    • With the responsive and clear touch screen it’s easier to see parameters are easy to read and easy to control.
  • Tube Management System
    • A standard fitted side clamp will prevent any infusion tubes becoming entangled and enhance the infusion overview and control.
  • Continuous Titration
    • The devices can change the flow rate during an infusion without interrupting it.
  • Open Design
    • Syringe installation is fast and convenient, and the position at the front of the device allows for constant observation of remaining liquid in the syringe.
  • Ingress Protection of IP24
    • The Syringe Driver SYS-50/52 by Medcaptain meets IP24 standards meaning it is (among other things) splash resistant and suitable to various kinds of environments.
  • Drive Head Protection Design
    • Easy and safe to transport and avoids bolus if the pump happens to fall down.
  • Large Capacity Lithium-ion Battery
    • Can run, uninterrupted, for up to 20 consecutive hours without needing to be charged.
  • Pre-Occlusion Alarm System
    • This alarm system has the ability to warn clinical personnel prior to the occlusion alarm, ensuring safe infusion for the patient.

Ambulance Ready:

Completely Ambulance EN 1789 Standard Certified. This means Syringe Driver SYS-50/52 by Medcaptain and Infusion Pump SYS-70 by Medcaptain are guaranteed to provide stable infusion during transportation.

Wireless Connectivity:

The devices have an optional built in wifi module. Both devices can connect via WLAN or LAN connection (Wirelessly or directly into the model with an ethernet cable) to any HIS (Hospital Information System). They are connected to Medcaptains MP-900 Infusion Central Monitoring System to implement centralised monitoring of all infusions. All SYS series pumps can also access the CIS (Clinical Information System) and HIS for clinical data integration.

Applications

  • Ideal solution for infusion treatment, home care and hospital use
  • Parkinson Treatment (Apomorphine hydrochloride)
  • Thalassemia
  • Chemotherapy
  • Chronic Pain Management
  • Neonatal Care
  • Epidural Treatment

Specifications

  • Syringe Size: 1 ml, 3 ml, 5 ml, 10 ml, and 20 ml single-use syringe
  • Infusion Rate: 1mm/hr to 99mm/hr
  • Bolus Volume: programmable from 0.1 ml to the syringe capacity
  • P.C.A. Function (Patient-Controlled Analgesia):PCA volume is programmable from 0.1 ml to ¼ of the syringe capacity. The locking interval between two PCAs is programmable from 5 to 60 minutes in 5-minute increments.
  • Accuracy: ± 5 %
  • Alarms: Syringe not loaded Occlusion Near Empty Infusion completed Low battery alert/Battery depleted Syringe disengaged Mechanical Error User Prompt
  • OLED Display: Syringe size; rate is set by mm/hr and displayed in ml/hr simultaneously; alarm message; running status
  • "Low Battery" LED Indicator": Flashing yellow/red indicator when battery is low or depleted
  • Maximum Infusion Pressure: ≤ 0.12 MPa/17.4 psi (with 10ml syringe)
  • Occlusion Alarm Pressure: 0.12 Mpa/17.4 psi (with 10ml syringe)
  • Safety Approvals: CE 0086, IEC 60601 - 1 - 8: 2003
  • Power Supply: AA Batteries x 3
  • Power Consumption: Pump will operate 100 hours at 1ml/hr flow rate
  • Dimensions: 166 (W) x 60 (D) x 30 (H) mm
  • Weight: ≤ 180g / 0.40 lbs
  • Package content: 1 x CA-500 Syringe pump; 1 x Extension tubing; 1 x P.C.A cable; 1 x Syringe protecting cover; 1 x Syringe securing strap; 1 x carrying bag

Performance characteristics

1. Large-screen color LCD, detailed menu display, easy for nurses to browse parameters; 2. Multiple infusion modes and custom function of bolus flow rate to meet the clinical needs of various departments; 3. Multi-point alarm indications such as sound, light and text, so that nurses can respond in time ; 4. History memory function, convenient for nurses to check infusion records at any time; 5. Real-time clock display to ensure that patients' infusion information is recorded correctly.

Applications

  • Great multi-therapy infusion platform ideal for emergency treatment and ambulatory care
  • General IV infusion
  • Antibiotherapy
  • Enteral infusion
  • Parenteral nutrition
  • Other continuous Infusion Therapies

Specifications

  • Infusion Rate Range: 0.1-1200 ml/h (or up to 200 drops/min)
  • Infusion Modes: ml/h | drop/min | volume/time | patient/weight
  • Volume to be Infused: 1 - 9999 ml
  • Bolus Rate Range: 1 - 1200 ml/h
  • Bolus Volume: 1 - 9999 ml
  • Accuracy: ± 2% on the pump only (± 5% with I.V set)
  • Occlusion Sensitivity Adjustment: High, Medium, Low, Lowest | 5.8 psi ~23.2 psi
  • KVO (Keep Vein Open): Automatically switches to KVO rate (from 0.1 to 3 ml/h) at the end of infusion process
  • Built-in Infusion Rates Memory: 10 preset infusion modes memories
  • Alarm Volume: High, Medium, Low
  • Alarms: Door open Start reminder Occlusion (up & down) Power source change Infusion completed IV set disengaged Empty bag Initialization error Drive mechanism error Battery low/Battery depleted
  • Battery: Built-in rechargeable NiMH battery Pump will operate 8 hours min. at 25 ml/h with fully charged battery
  • Battery Charge Time: 6 hours
  • Dimensions: 105 (W) x 172 (D) x 240 (H) mm
  • Net Weight: 2.9 kg / 6.4 lbs (battery included)

Infusion Pump MedCaptain SYS6010

Infusion Pump Features: Accurate infusion Reliable and safe Easy- to-use Motorized Door Mechanism Wi-Fi networking Motorized Anti-Free Flow Mechanism Voice communication Night mode Barcode scanning Automatic maintenance reminder Multiple infusion modes Dual-CPU design Anti-Bolus High values

More than Accurate

Automatic pump door mechanism: MedCaptain’s unique design patents include an unique motorised door mechanism and automatic anti-free-ow clamp amongst other things. The door opens when the corresponding button in pressed lightly. Dual CPU and two-channel alarm operation display and motor control are implemented by two CPUs who work independently to ensure real-time control and data reliability. (Pictured, Drop Sensor is optional)

Easy To Use

Touch Screen operation: Making clinical use faster and more convenient. Various Infusion Modes: Adapted for Various clinical departments and a variety of special drugs.

Information Network

Continuous titration: Changing the flow-rate during infusion without stopping the infusion. Internal Wi-Fi module enables the pump to connect to MP-900 directly for centralised monitoring of infusion. (Optional) Or connect to CIS or HIS system to integrate clinical data. Voice Communication: The built-in voice system makes up the traditional nurse call system and enables medical staff to respond to an infusion problem in time. (Pictured, Nurse call is an optional feature)
Weight
DimensionsN/AN/AN/AN/AN/AN/A
